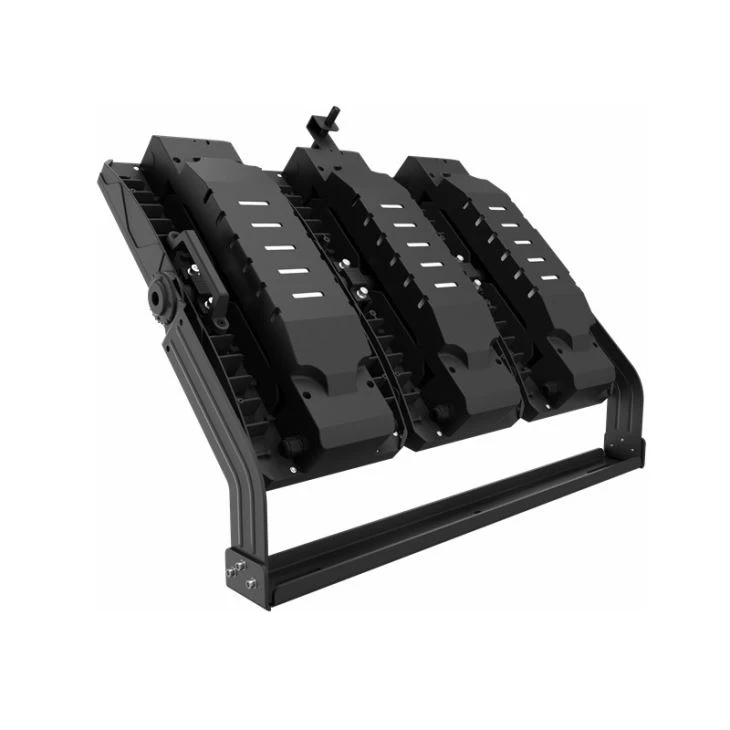

Cov Nta Tseem Ceeb ntawm IP66 LED Chaw Nres Teeb Nruab Nrab rau Tsev Hais Plaub Tennis
- Siab Zoo Philips Lumileds 3030 Daim Duab.
- Meanwell / Inventronics Tsav Tsheb.
- 15 °, 30 °, 45 °, 60 ° nqaj ces kaum tsim rau koj cov ntawv thov sib txawv.
- Khoom siv kho tau tag nrho 0-360 ° tuaj yeem kho tau, ib qho module 0-90 ° yuav kho tau.
- Lub khob iav tuaj yeem tiv thaiv cov LED txig txig.
- Yeem laser cwj mem siv los kho cov lus qhia mounting thaum nruab teeb.
- Luminaire Kev Siv Siab Ua Si txog 150lm / W.
- CE, RoHS, LM-80, ISO9001, ISO14001
- Txog 100,000 teev Lifespan (L70)
- 5 Xyoo Warranty.
Cov ntawv thov
Chaw ntau pob, Square, Tennis Court, kev hais kwv txhiaj, Thaj chaw teeb pom kev zoo ...
Tuam txhab ua ke
Q&A
Q: Thaum twg ZGSM pom?
A: ZGSM tau tsim muaj nyob rau xyoo 2015, tau cog lus tsim qauv thiab tsim txoj kev teeb pom kev zoo ntawm LED Txoj Kev Teeb, LED Highbay Lights, LED Dej Nyab Teeb, LED Chaw Nres Tsheb Teeb, LED Chaw Sib Tw Teeb, Hnub Ci Txoj Kev Teeb dua 14 xyoos.
Q: Koj lub lag luam tseem ceeb nyob qhov twg?
A: Peb tau muag peb cov khoom lag luam LED rau ntau tshaj 80 lub teb chaws thoob qab ntuj. Qhov twg xav tau ntsuab teeb pom kev zoo, qhov twg muaj peb cov khoom.
Q: Qhov ua tau zoo ntawm Cov Qauv no yog dab tsi?
A: peb siv cov kev ua haujlwm siab Lumileds Luxeon 3030 2D chips, qhov ua tau ntawm lub teeb yog 150lm / W.
Q: Cov qauv no puas dim?
A: Peb muaj 2 version rau koj xaiv, ob qho tib si dimmable (1-10V, PWM, Kuj) thiab tsis tsav dimmable muaj.
Q: Yuav ua li cas txog lub warranty thiab lub neej ntawm UFO?
A: Peb muab 5 xyoo lav rau tag nrho cov teeb. Lub neej ntawm tus qauv no yog 100000hours @ 25 ℃ 70 L70.
Cim npe nrov: ip66 coj chaw nres tsheb teeb ua kis las rau lub tsev hais plaub ntaus pob tesniv, cov chaw tsim khoom, cov chaw muag khoom, yuav, pheej yig, tus nqi
| Qauv | ZGSM-TGD840M |
| LED Hom | LUXEON® 3030 2D |
| Tsav Hom | Kev Koom Tes EUK Series |
| Nquag Wattage | 840W |
| LED Qhov ntau | 1334 Pcs |
| Input Voltage | 100-240 / 277VAC, 50 / 60Hz |
| Zog Zog | > 90% |
| Lub Zog Khoom | > 0.95 |
| Lub Teeb Rated Luminous Efficiency | > 150lm / w |
| Teeb nyob rau Lumen tso zis ntau lawm | 126000 lm (Lumen kam rau ua +/- 5%) |
| Xim Qhov Ntsuas Ua Piav Qhia | Ra> 70 |
| Xim Xim Kub | 3000K, 4000K, 5000K lossis 5700K |
| Photometric Hom | 15, 30, 45, 60 qib |
| Cov Kev Tswj Xyuas Kub Kom Zoo | 25ºC |
| Cia Khoom Kub | '-40ºC ~ + 50ºC |
| Chaw Ua Haujlwm Ib Zaug | Ntawm-40 ° C ~ + 50 ° C, 10% ~ 90% RH |
| Tag Nrho Cov Harmonic Sib Hloov | <> |
| Lumen Txij Nkawm | > 100,000 xuab moos -L70, @ 25 ºC (77 ºF) |
| Khoom Siv Lub Cev thiab Lub Plhaub | Ncab Txhuas Alloy |
| Qhov Ntsuas Tus IP | IP66 nrog cov ntawv xeem |
| Ntawv pov thawj | CE, ROHS |
| Yeem Muaj nuj nqi | 1-10V DC Dimming |
| Warranty | 5 xyoos |
| Cov Lus Qhia | |
| Fixture Dimension | 687 x 836 x 222 hli |
| Fixture Nyhav | 43.0 kg |
| Cov Khoom Seem | 770 x 900 x 235 hli |
| Khoom hnyav | 50.0 kg |
