Nta:

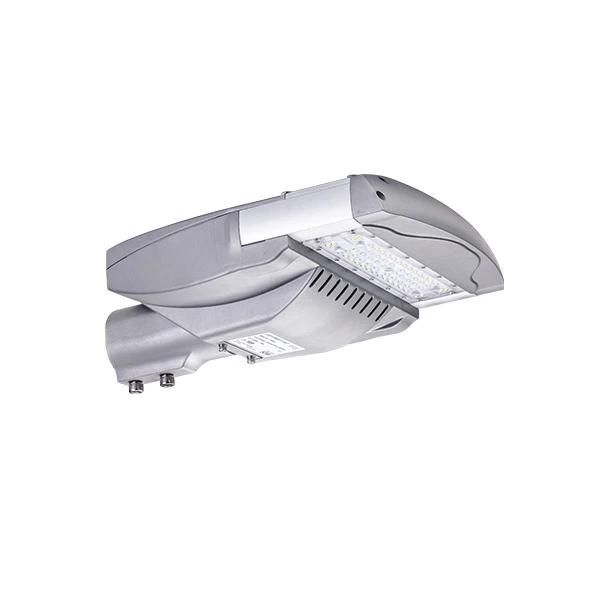

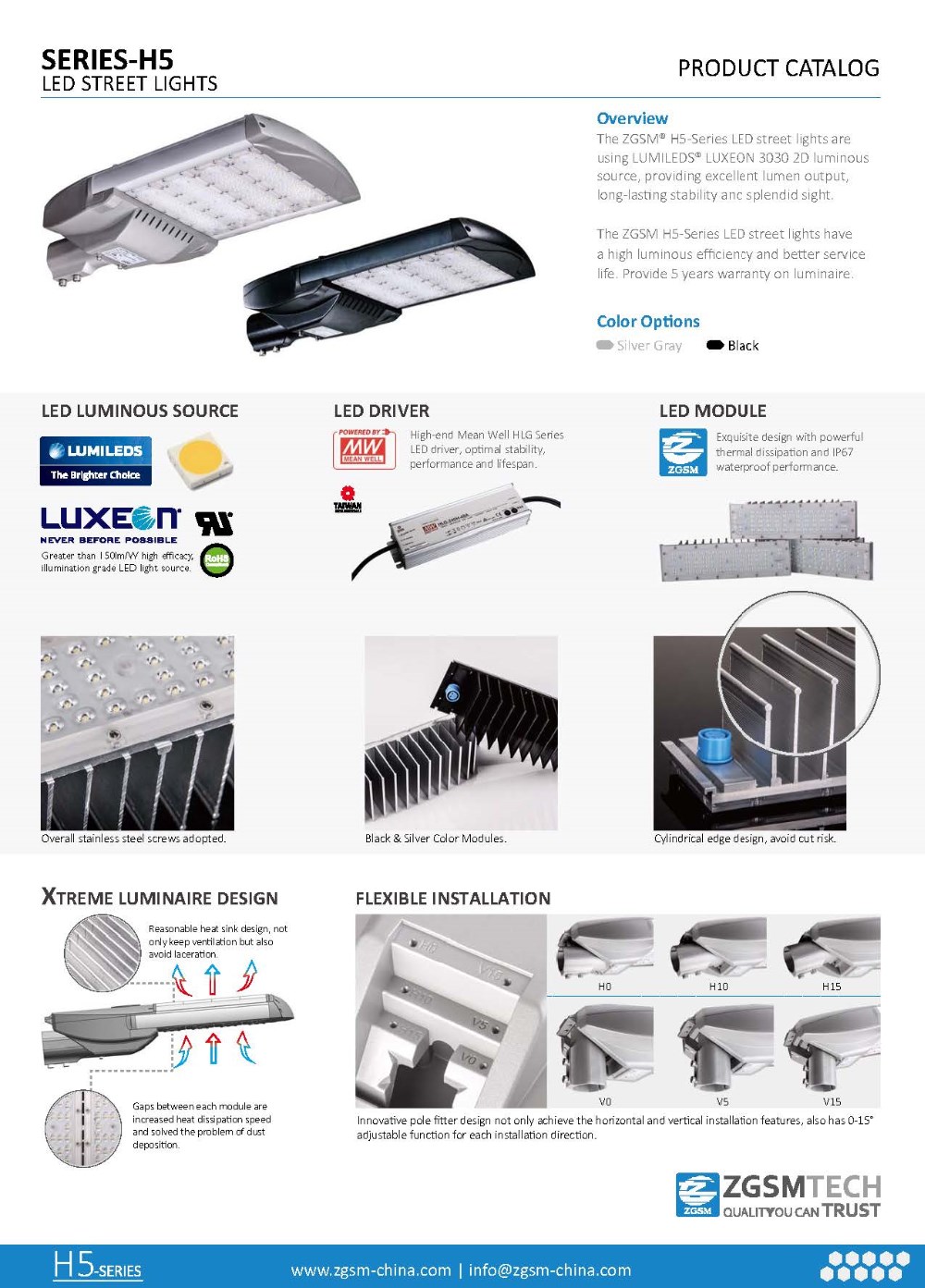

1. Philips LUMILEDS® LUXEON 3030
2. Inventronics los yog Meanwell tsav nrog dav voltage: 100-240V / 277V AC
3. Txhua lub module nrog 60-63 pcs LED chips
4. Kev ua haujlwm zoo siab: 115 LM / W
5. Cov nqi qis dua.
| Specifications | |
| Qauv | ZGSM-LD50H5 |
| LED hom | LUMILEDS® LUXEON 3030 |
| Driver Hom | Meanwell HLG series / Inventronics |
| Norminal Wattage | 50W |
| LED Module Quantity | 1 module |
| Kev tawm tswv yim Voltage | 100-240 / 277VAC / DC12 / 24V |
| Fais fab Efficiency | > 90% |
| Qhov Fais Fab | > 0.95 |
| Teeb Raws Luminous Efficiency | > 125 lm / w |
| Teeb Rated Lumen | 6,250 lm (Lumen kam rau ua kom +/- 5%) |
| Xim Rendering Index | Ra> 70 |
| Xim kub | 3000, 4000, 5000 lossis 5700K |
| Photometric Hom | Hom I Nruab Nrab; Hom II Nruab Nrab; Hom III III, Hom Vev |
| Kev Kub Ntxhov Kev Kub Siab | 25 ℃ |
| Cia Cov Dej Kub | -40 ° C ~ 50 ° C |
| Chaw Ua Hauj Lwm | Ntawm-40 ° C ~ + 50 ° C, 10% ~ 90% RH |
| Tag Nrho Harmonic Distortion | <> |
| Lumen Txij Nkawm | > 75000 teev -L70, @ 25 ºC (77 ºF) |
| Lub cev thiab Plhaub Cov Ntaub Ntawv | Anodized Txhuas |
| Kev Ntsuam Xyuas IP | IP66 nrog daim ntawv qhia txog kev xeem |
| IK Ntsuam Xyuas | IK10 nrog rau kev tshaj qhia |
| Daim ntawv pov thawj | CE, ROHS, IOS9001, ISO14001, LM80, ENEC, CB |
| Yeem Ua Haujlwm | 1-10V DC los yog PWM teeb liab los yog Kev Dimming |
| Timer / Photocell Control | |
| Warranty | 7 xyoo |
| Cov Ntsiab Lus | |
| Fixture Dimension | 431 x316 x 136 hli |
| Fixture Qhov hnyav | 5.3 kg / 11.7 lbs |
| Ntim Dimension | 480 x 330 x 200 hli |
| Ntim phom | 6.3 kg / 13.9 lbs |

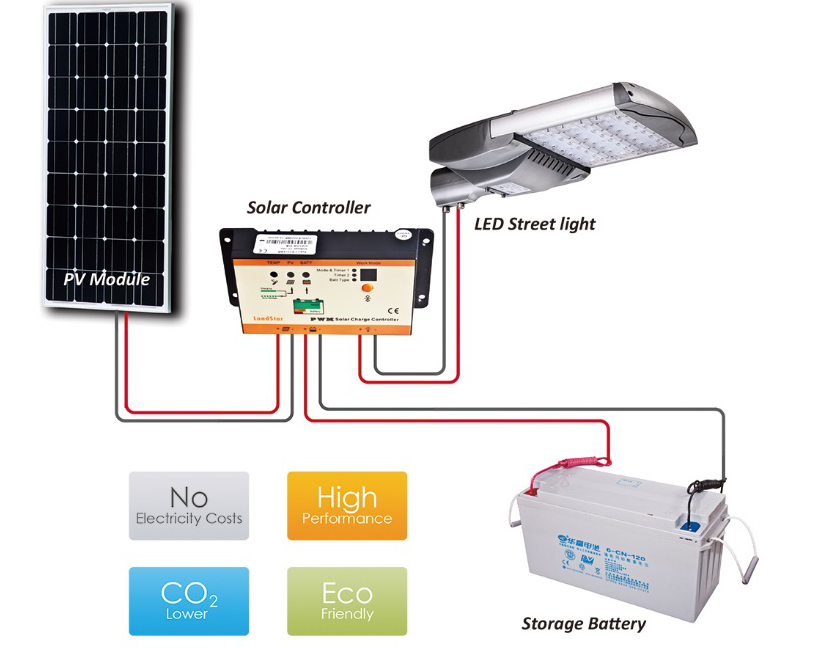

Cim npe nrov: 12 / 24v dc 50w zog txuag hnub ci txoj kev teeb, manufacturers, tus neeg muag khoom, yuav, pheej yig, nqi
