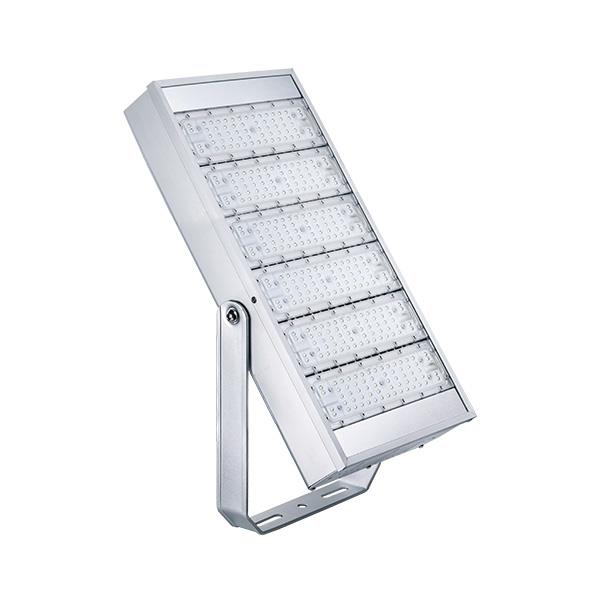

ZGSM HB series LED Dej nyab lub teeb tau siv Lumileds Luminous qhov chaw, muab cov lumen tsim tawm zoo, ua kom ntev ntev kev ruaj khov thiab pom kev zoo nkauj. Kev ua haujlwm ntawm 5050 chips yog ntau tshaj 185 lm / w.
Hauj lwm lawm
Xa kev nug
| Qauv | ZGSM-FGD200H5B |
| LED Hom | Philips LUXEON ® 3030 2D lossis 5050chips |
| Tsav Hom | Meanwell HLG series |
| Nquag Wattage | 200W |
| LED Module Muaj Tsawg Tus lej | 4 modules |
| Input Voltage | 100-240 / 277VAC |
| Zog Zog | > 90% |
| Lub Zog Khoom | > 0.95 |
| Lub Teeb Rated Luminous Efficiency | > 130lm / w lossis> 160lm / W |
| Teeb nyob rau Lumen tso zis ntau lawm | 26000 lm (Lumileds 3030), lossis 32000lm ((Lumileds 5050) |
| Xim Qhov Ntsuas Ua Piav Qhia | Ra> 70 |
| Xim Xim Kub | 3000K, 4000K, 5000K lossis 5700K |
| Photometric Hom | 60,90,110 degrees |
| Cov Kev Tswj Xyuas Kub Kom Zoo | 25 ℃ |
| Cia Khoom Kub | -40 ℃ ~ + 70 ℃ |
| Ua Haujlwm Thaj Chaw Ib Zaug | Ntawm-40 ° C ~ + 50 ° C, 10% ~ 90% RH |
| Tag Nrho Cov Harmonic Sib Hloov | <> |
| Lumen Txij Nkawm | > 75,000 xuaj moos -L70, @ 25 ºC (77 ºF) |
| Khoom Siv Lub Cev thiab Lub Plhaub | Anodized Txhuas |
| Qhov Ntsuas Tus IP | IP66 nrog cov ntawv xeem |
| IK Qhov Ntsuas | IK10 nrog cov ntawv xeem |
| Ntawv pov thawj | CE, ROHS, GS, CB, ISO9001, ISO14001, ISO50001 |
| Yeem Muaj nuj nqi | Dali, 1-10V DC lossis PWM teeb liab lossis Resistance Dimming, Timer; |
| Warranty | 7 xyoo |
| Fixture Dimension | 385 x270x1300 hli |
| Fixture Nyhav | 5.4 kg /11.9 lbs |
| Cov Khoom Seem | 505 x370x200mm |
| Khoom hnyav | 6.3 kg /13.9lbs |
Tsim muaj xyoo 2005, Hangzhou ZGSM Technology Co., Ltd yog nyob rau hauv Linglong Industrial Park, sab hnub poob ntawm Hangzhou. ZGSM yog lub tsev thev naus laus zis thiab cov chaw lag luam ntiag tug tshwj xeeb rau R&D, tsim thiab muag hluav taws xob zoo hluav taws xob sab hauv sab hauv / sab nraum zoov teeb, LED tsheb teeb, hnub ci teeb hluav taws xob thiab hnub ci hluav taws xob LED teeb pom kev zoo thiab lwm yam. Raws li ib qho ntawm cov qauv kev lag luam patent thiab firsst batch ntawm txuag hluav taws xob kev pabcuam tuam txhab hauv Zhejiang Xeev, peb tau sau npe ntau dua li tsib caug khoom; peb tseem yog tus tswv cuab ntawm Illuminating Engineering Society thiab Semiconductor Kev Lag Luam Kev Lag Luam hauv Suav.
Cim npe nrov: IP66 IK10 200W SMD LED Dej nyab lub teeb, cov tuam ntxhab, cov chaw muag khoom, yuav, pheej yig, nqi
