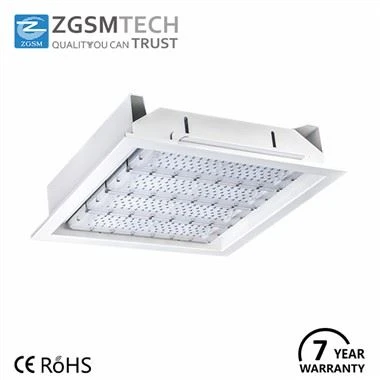

Square LED Canopy Lub Teeb Nrog Cov Ntawv Pov Thawj Ua Haujlwm
ZGSM® H-Series LED cov nplooj saum toj teeb yog siv
PHILIPS LUMILEDS® luminous qhov chaw, muab khoom
zoo heev lumen tso zis, ntev-ntev stability thiab
ci ntsa iab pom.
ZGSM H -Series LED nplooj saum toj teeb muaj a
siab luminous efficiency thiab kev pab zoo dua lub neej.
Muab 7 xyoo lav rau ntawm luminaire.
Cov Ntawv Cov Ntaub Ntawv:
| Cov Lus Qhia Tshwj Xeeb | |
| Qauv | ZGSM-QD120H4 |
| LED Hom | Philips LUMILEDS® LUXEON 3030 |
| Tsav Hom | Meanwell HLG series |
| Nquag Wattage | 120W |
| LED Qeb Npaum Muaj Tsawg | 3 lub kawm |
| Input Voltage | 100-240 / 277VAC |
| Zog Zog | GG gt; 90% |
| Lub Zog Khoom | GG gt; 0.95 |
| Lub Teeb Rated Luminous Efficiency | GG gt; 140lm / w |
| Teeb nyob rau Lumen tso zis ntau lawm | 16800 lm (Lumen kam rau ua + / - 5%) |
| Xim Qhia Qhov Ntsuas | Ra> 70 |
| Xim Xim Kub | 3000 4000 5000 lossis 5700K |
| Photometric Hom | 60,90,110 degrees |
| Cov Kev Tswj Xyuas Kub Kom Zoo | 25℃ |
| Cia Khoom Kub | ‘-40℃~+70℃ |
| Ua Haujlwm Thaj Chaw Ib Zaug | Ntawm-40 ° C ~ +50 ° C, 10% ~ 90% RH |
| Tag Nrho Cov Harmonic Sib Hloov | GG lt; 10% |
| Lumen Txij Nkawm | GG gt; 100000 xuab moos -L70, @ 25 ºC (77 ºF) |
| Khoom Siv Lub Cev thiab Lub Plhaub | Anodized Txhuas |
| Qhov Ntsuas Tus IP | IP66 nrog cov ntawv xeem |
| IK Qhov Ntsuas | IK10 nrog cov ntawv xeem |
| Ntawv pov thawj | CE, ROHS, GS, CB, SAA |
| Yeem Muaj nuj nqi | 1-10V DC lossis PWM teeb liab lossis thev kuj tsis hnov lus |
| Timer / Photocell Tswj | |
| Warranty | 7 xyoo |
| Qab nthab Thickness | 5 txog 25 mm /0.2 txog 1.0 nti |
| Qhov loj me | 419 × 285 hli / 16.5 × 11.2 nti |
